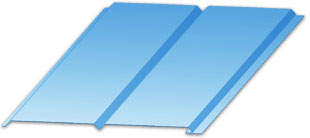

Vee Soffit

Vee Soffit is designed for wall, fascia, liner, and soffit applications with a stylish V detail. Sharp, crisp edges act to improve the grooved look while providing optimal strength. Concealed fastener attachment adds maximum aesthetic value.

Features

  • 12" width.
  • Smooth, Stiffener Ribs, Striated, or Embossed Finishes.
  • Integral Slotted Fastening Strip.
  • Optional factory applied sealant in female panel rib.
  • Minimum 3:12 pitch recommended.

Colors and Finishes

  • 26, 24, 22 Ga Acrylic Coated Galvalume.
  • 26 Ga SMP Color Finish.
  • 24 Ga Kynar500® PVDF resin Color Finish.
  • 26 & 24 Ga Paint Grip.

Performance/Testing

  • UL 580 Class 90 Wind Uplift Rated.
  • UL 2218 Class 4 Impact Rated.
  • UL 790 Class A Fire Rated.
  • TDI Coastal Windstorm Approved.
  • Florida Approved FL5107.
